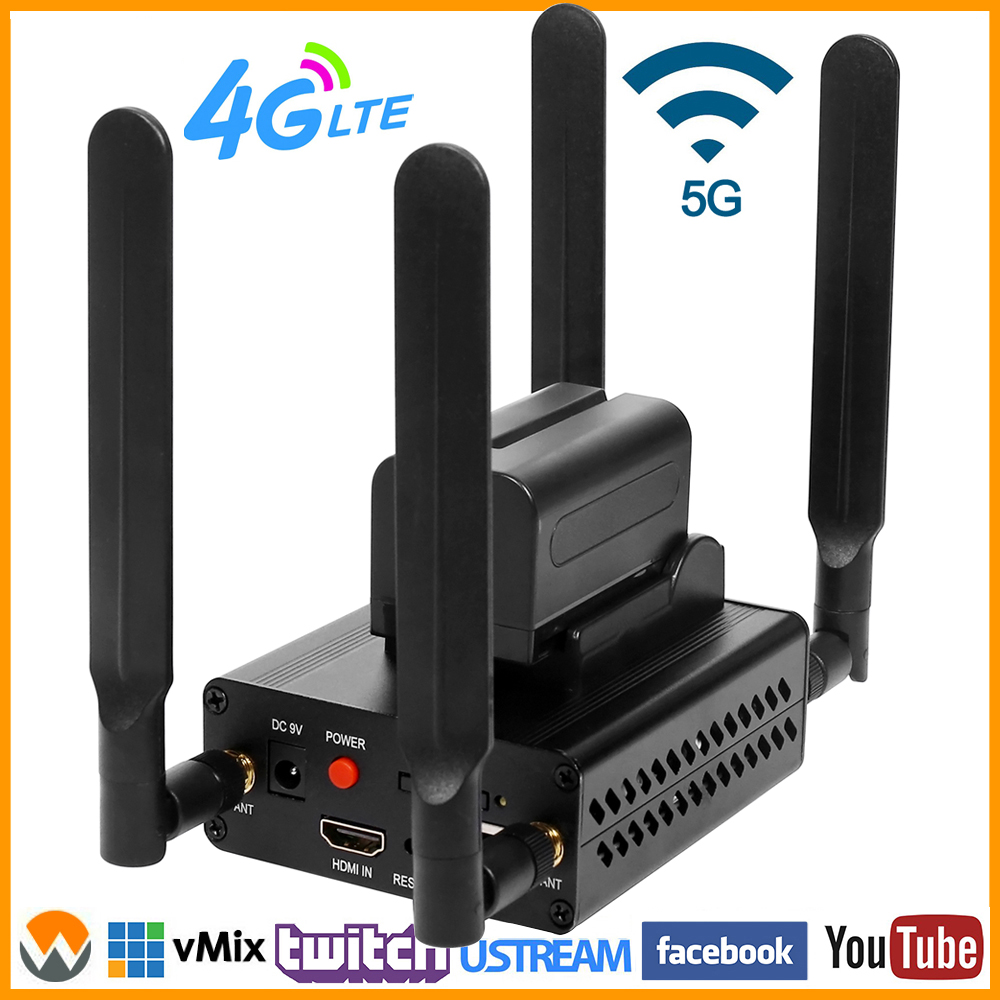

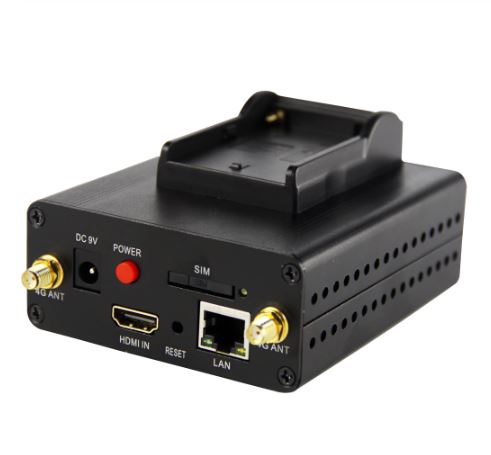

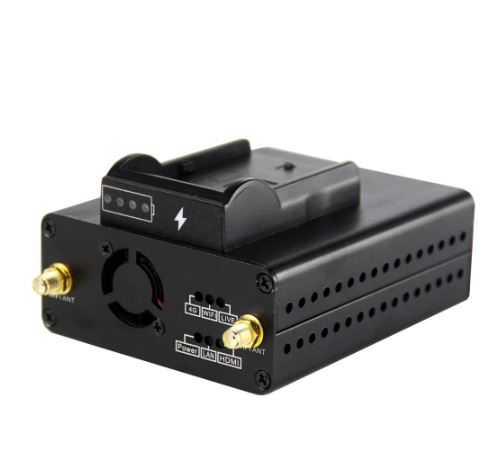

E-BTW400 – – 4G LTE HDMI To IP HD Video Encoder

76,000.00 65,000.00

  • Brand Name: MSLiveBox
  • Package: Yes
  • Model Number: E-BTW400
  • Voltage: 12V
  • Input: HDMI(audio bulid-in)
  • Output: 1000M Ethernet Port(RJ45) or WIFI or 3G /4G LTE
  • Streaming Protocol: HTTP, RTSP, RTMP, RTMPS, UDP, RTP, ONVIF, HLS(M3U8), Multicast, etc
  • Video Encoding: MPEG-4 /H.264 AVC, MJPEG
  • Audio Encoding: AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
  • Video Stream: Up to 4 Video Streams Output Simultaneously
  • Bitrate Control: 32kbit /s to 32mbit /s Adjustable
  • Service: Provide SDK and API and CGI for Secondary Development
  • Video Resolution: Max 1920x1080P /60fps Input and Output
  • Battery: SONY Battery F550, F750, F970 For Selection
  • OSD Setting: Support Insert Logo and Text and Time on the Output Displayed Video
  • Control Panel: Webpage or APP Control
  • Upgrade: Firmware is Upgradeable
  • Hot Shoe: Yes, included
  • Customization: Support Logo, Language, Firmware etc Customization
  • Warranty: 1-year Warranty and Free Lifetime Technical Support


Share With love





• You may like H.265 4G encoder model(Click here to see product details)4g


MSLiveBox video encoder(Model No. E-BTW400) is a HD audio and video encoding device with powerful functionality. It supports HDMI(audio build-in) input, H.264 video encoding and AAC /MP3 /MP2 /AC3 /G.711 audio encoding, 4 video streams output simultaneously. It supports HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV, RTMPS etc streaming protocol. It enable you to choose 4G LTE or 3G or WIFI or LAN port to transmit the video stream. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.

We produce multi-channel video encoder decoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16 encoder cards to be installed.

All MSLiveBox video encoders and video decoders include a one-year manufacturer warranty and free lifetime technical support. Also we provide SDK and API and CGI control protocol for secondary development. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.

Typical Connection

1). For Live Streaming Online Connection

H9fc9099c3b7b4d1fb4a3349a9c444489t (1)


2). For Multi-purpose ConnectionHa0422f170ecf4886ae033990f2e95847U


3). For IPTV Project Connectionhdmi

The Feature

•   Embedded HiLinux system, stable and effective

•   Support wide area network remote management(via port forwarding)

•   Support MPEG-4 /H.264 AVC and MJPEG video encoding for selection

•   Support AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 audio encoding for selection

•   The bitrate of output video stream is adjustable from 32kbit/s to 32mbit/s(CBR or VBR bitrate controlling mode)

•   Support HTTP, UDP, RTP, RTSP, RTMP, RTMPS, HLS(M3U8), FLV, ONVIF, Unitcast, Multicast etc streaming protocol

•   Support insert image, logo, text, roll text, time on the output video stream

•   Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)

•   Support different protocol transmission for the 4 output video streams

•   Support upgrade device by upgrading new firmware

•   Support configure the encoder via webpage or APP

•   Support 3G(TD-SCDMA) or 4G(FDD LTE/TDD LTE)

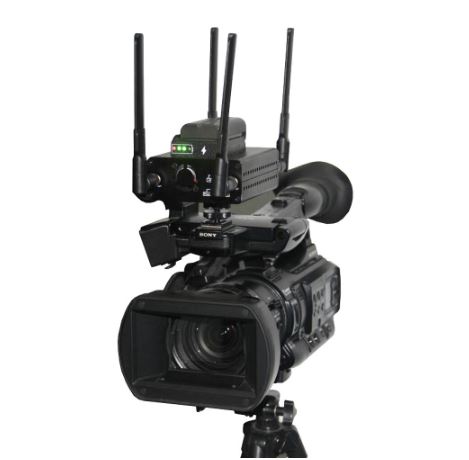

•   Support hot shoe mount at camera

•   Support external SONY battery F550, F750, F970 for selection

•   Support 2.4G WIFI and 5G WIFI

​​•   Support connect to spare WIFI automatically when WIFI signal lost connection

•   Provide SDK and API and CGI for secondary development

​•   Support brightness, contrast, hue, saturation setting on output displayed video

•   Network interface full-duplex mode with 1000M speed

•   Support HDCP and HD blue-ray

•   English webpage operating interface, language is customizable

•   A click to restore the default configuration

•   Stable and effective, support 7 x 24h working time

•   Support multichannel 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack

•   Provide many kinds of customization(logo print, language customization, firmware or function customization etc)

•   Multi platforms live streaming

This HDMI encoder is easy to be operated. Turn your HDMI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, you can choose any of the popular live streaming platform to live streaming at anytime you like, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xtream codes. It supports multi-stream output, up to 4 video streams output simultaneously. You can push multi video stream to multi-platform at the same time.


•   Multi type video stream URL play

Not only pushing video streams to online platforms, you can also use video software or APP such as VLC or Vmix etc to play video stream URL. With these video stream URL, you can play video at anywhere, at any time. Meanwhile, you can add logo or text or time to displayed video.


•   Long-lasting battery life

You can use SONY battery F550, F750, F970. Normally the battery enable you to do live stream broadcast for 8+ hour. When the electric quantity is low, you can just connect a USB battery pack to keep it going.

Note: 1.  The working time of the battery is based on the battery model

2.  The battery is not included because of the shipping reason.You can buy SONY battery F550/ 750 /F970 at your local place.


The Specification

Model No. E-BTW-400
Input HDMI(Support HDCP)
Input Resolution Max 1080P or 1080i resolution, Max 60fps frame rate
Encoding Type H.264 /AVC and MJPEG for selection
Encoding Levels H.264 high /main /baseline profile
Video Bitrate Adjustable from 32kbit /s to 32mbit /s
Bitrate Control CBR or VBR or Strong CBR for selection
Output Resolution It is adjustable, max 1920x1080P /60fps
Video Pre-processing De-interlacing, noise reducing and sharpening
Input HDMI embedded audio
Audio Encoding AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Sampling Rate 44.1KHz, 48KHz
Bitrate Control Adjustable from 48000~320000
Sampling Accuracy 24bit
Interface Ethernet port Or WIFI(2.4G /5G) Or 3G(TD-SCDMA) or 4G(FDD LTE/TDD LTE)
4G Band FDD LTE: B1, B2, B3, B4, B5, B7, B8, B9, B20; TDD LTE: B38, B39, B40, B41
Streaming Protocol HTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, ONVIF, RTP, Unitcast, RTMPS etc
Control Panel Webpage control panel(language customizable) or APP
Firmware Upgrade Firmware is upgradeable
Dimension (W* L* H) 125 x 90 x 60 /mm
Net Weight 0.4kg
Hot shoe Included
External Battery Support SONY battery F550 /F750 /F970 for selection
Temperature 0 to 45(For working), -20 to 80(For storing)
Input Voltage DC 12V /1A or 9V /1A
Power Consumption 8w


Control Panel

1.  Status DisplayHc7b3a09f8e864940899a115459ffbe92Dstatus2status3


2.  Video Stream SettingH46580f9a69c8479ab17e3203e83ded84R


3.  Audio SettingH29ae41f763eb42ba832387205b5ecf178


4.  Advanced SettingH8c7f96e785a6433087505b2301a9e174zadvanced2


5.  OSD SettingHad267dc2b8a241e08c8f094d0a1f8b88POSD2


6.  Logo UploadH7e954e6d7b674e87bc40f04cd93ecd1cS


7.  Network Settingmain1main2


8.  WIFI SettingH68feb3c1c9d44f3e9b79a8d4b95d3694uWIFI2


9.  Upgrade FirmwareH85e892fdf7b24cbb83d881fcdb0eee02v




APP Control
