HD/SDI Video Decoder

55,000.00 45,000.00

Model No. MSVD265S1
Input Video stream URL
Video Resolution Max 3840*2160P decoding and display
Feature Crop Setting, Rotate Setting, Scaling Setting etc
Frame Rate Support up to 60fps decoding and display(When 1080P or less)
Image Setting Resolution, Luma, Contrast, Saturation, Hue Setting
OSD Support inset logo and text and roll text on output displayed video
Channel Support max 4 channels decoding and display simultaneously
Output Audio HDMI embedded audio and 3.5mm stereo audio
Audio Decoding AAC, AAC+, AAC++, MP3, MP2, AC3
Stereo Audio From channel 1 to channel 4 for selection
Interface 1000M Ethernet port(RJ45)
Streaming Protocol HTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, FLV RTP, Unitcast
Control Panel Webpage UI (language customizable)
Firmware Update Enable by uploading files to dashboard
Dimension (W* L* H) 129 * 105 * 30 /mm
Gross Weight 0.3KG
Temperature 0 to 45(For working),  -20 to 80(For storing)
Input Voltage DC 12V /1A
Power Consumption 5W


Share With love

H.265 H.264 IP To SDI HDMI VGA CVBS Video Streaming Decoder, for HD IP Camera and Live Stream Decoder For Decoding HTTP RTSP RTMP UDP M3U8 HLS etc

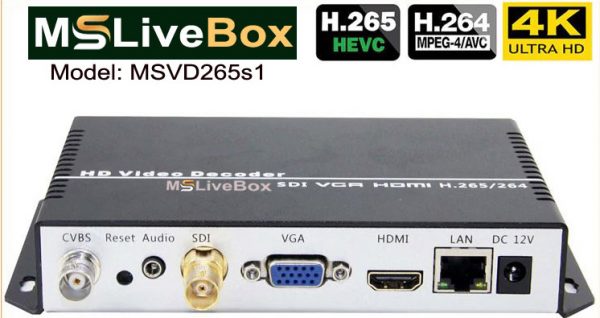

MSLiveBox IP video decoder (Model No. MSVD254S1) is a UHD audio and video decoding device with powerful functionality. It support H.265 /H.264 video decoding and AAC /MP3 /AC3 /AC3 audio decoding. It supports RTSP, HTTP, UDP, RTP, RTMP, HLS(M3U8), FLV, Multicast, Unicast etc streaming protocol decoding, HDMI and AV /RCA /CVBS and SDI and VGA output simultaneously. It supports up to 4K UHD video stream URL decoding. Its high integration and cost-effective design make this device widely used in variety of field such as advertisement or wall display or live broadcast etc.

The Feature

•   Embedded HiLinux system, stable and effective

•   Support HEVC /H265 or H.264 /AVC video decoding

•   Support HDMI+VGA+CVBS+SDI+stereo audio (3.5mm) output simultaneously

•   Support multiple-brand set-top box and IP camera decoding

•   Support HTTP, RTSP, UDP, RTP, RTMP, HLS(M3U8), FLV, Unitcast, Multicast streaming protocol

•   Support up to 3840x2160P /30fps UHD video resolution input and output

(If 1080P or less than 1080P input, support max 60fps frame rate)

•   Support only stereo audio(3.5mm jack) output(from channel 1 to channel 4 for selection)

•   Support image parameter setting(Resolution, Luma, Contrast, Saturation, Hue)

•   Support crop the output displayed video and play the crop part

•  Support enlarge or shrink the output displayed video

•   Support rotate the output displayed video to 90℃, 180℃, 270℃

​•   Network interface full-duplex mode with 1000M speed

•   Firmware is upgradeable

•   Support english webpage UI and language customizable

•   A wide area network remote management

•   PAN /NTSC for selection for CVBS output

•   Stable and effective, support 7x24h working time

•   A click to restore the default configuration

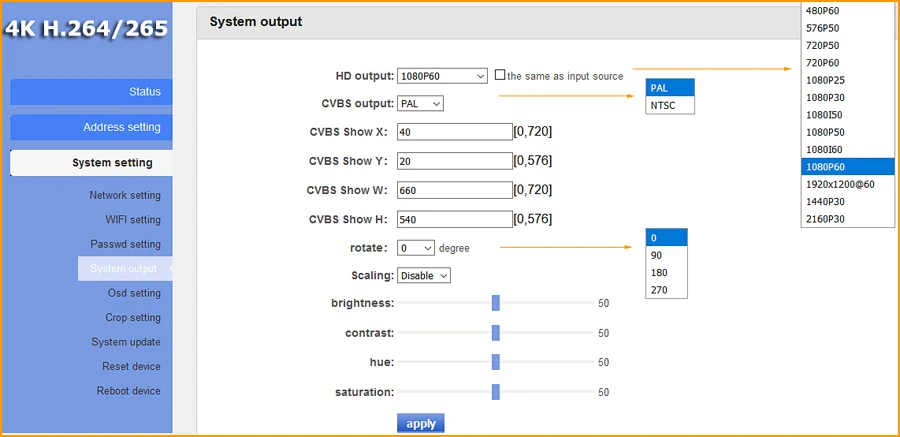

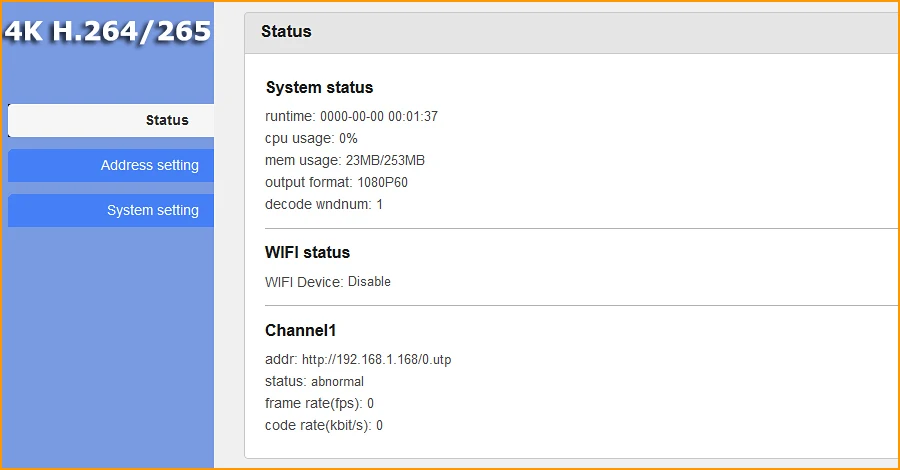

 Control Panel

hdmi encoder


hdmi encoder


hdmi encoder


hdmi encoder


hdmi encoder


hdmi encoder


hdmi encoder
