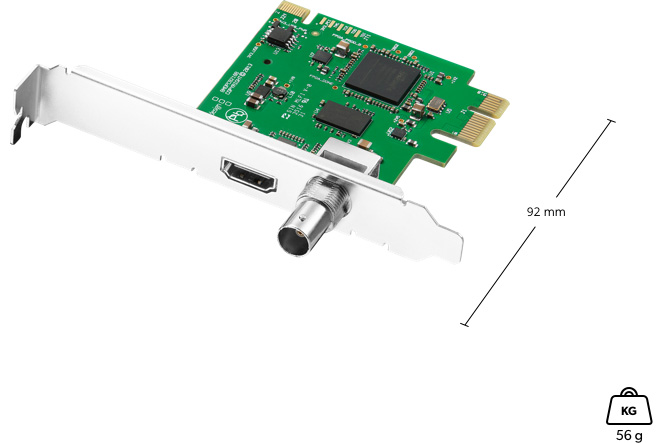

DeckLink Mini Monitor
₹10,450.00 ₹9,300.00
What’s Included
DeckLink Mini Monitor
Low profile slot bracket
SD card with software and manual
Warranty
3 Year Limited Manufacturer’s Warranty.
Description
Broadcast quality 10-bit SDI and HDMI PCIe playback card for SD and HD formats up to 1080p30
Description
Monitor uncompressed 10-bit video from your computer! Includes SDI and HDMI outputs for connecting to any television or video monitor. DeckLink Mini Monitor auto switches between SD and HD so it handles all common video formats. DeckLink Mini Monitor is the perfect solution for monitoring from editing software while you edit! Includes two PCI Express shields for both full height and low profile slots.
Connections
SDI Video Outputs
1 x 10 bit SD/HD switchable.
SDI Audio Outputs
8 channels embedded in SD and HD.
HDMI Video Outputs
1 x HDMI 1.4 type A connector.
HDMI Audio Outputs
8 Channels embedded in SD and HD.
Computer Interface
PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker.
Processing
Colorspace Conversion
Hardware based real time.
HD to SD Down Conversion
Software based down conversion during video playback.
HD Cross Conversion
Software based cross conversion from 720p to 1080HD on playback.
Real Time Effects
DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Physical Specifications
Power Requirements
Power Consumption
4 Watts
EMC Certifications
FCC, CE and C-Tick
Environmental Specifications
Operating Temperature:
5° to 40° C (32° to 104° F)
Storage Temperature:
-20° to 45° C (-4° to 113° F)
Relative Humidity:
0% to 90% non-condensing
What’s Included
DeckLink Mini Monitor
Low profile slot bracket
SD card with software and manual
Warranty
3 Year Limited Manufacturer’s Warranty.
