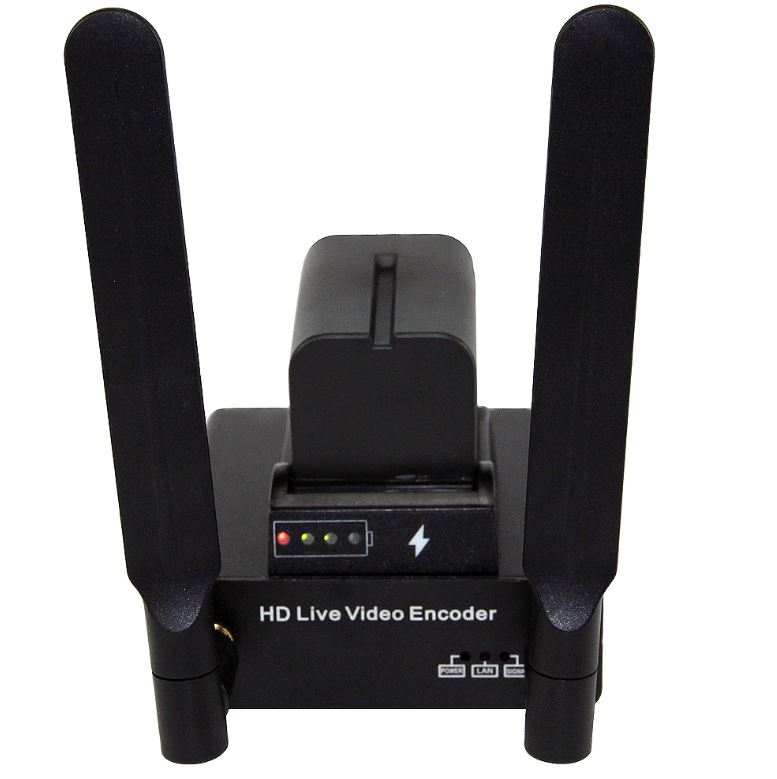

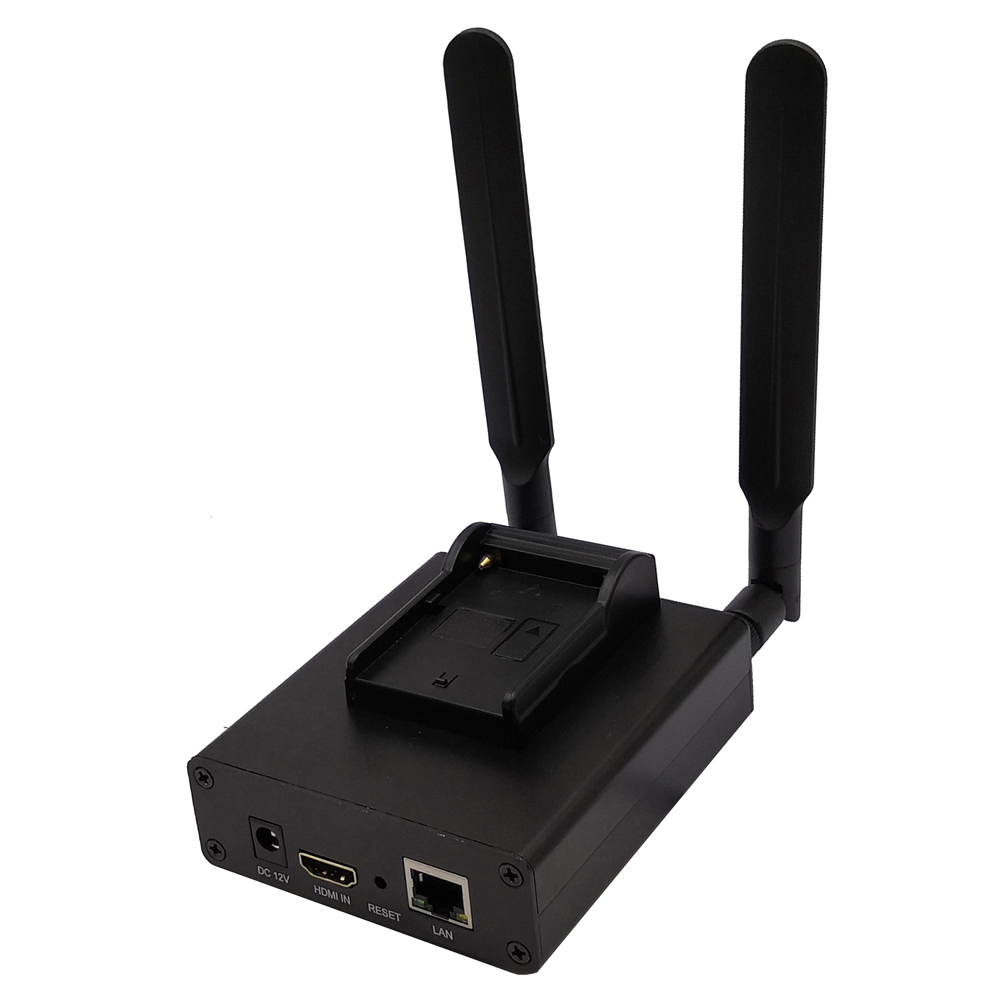

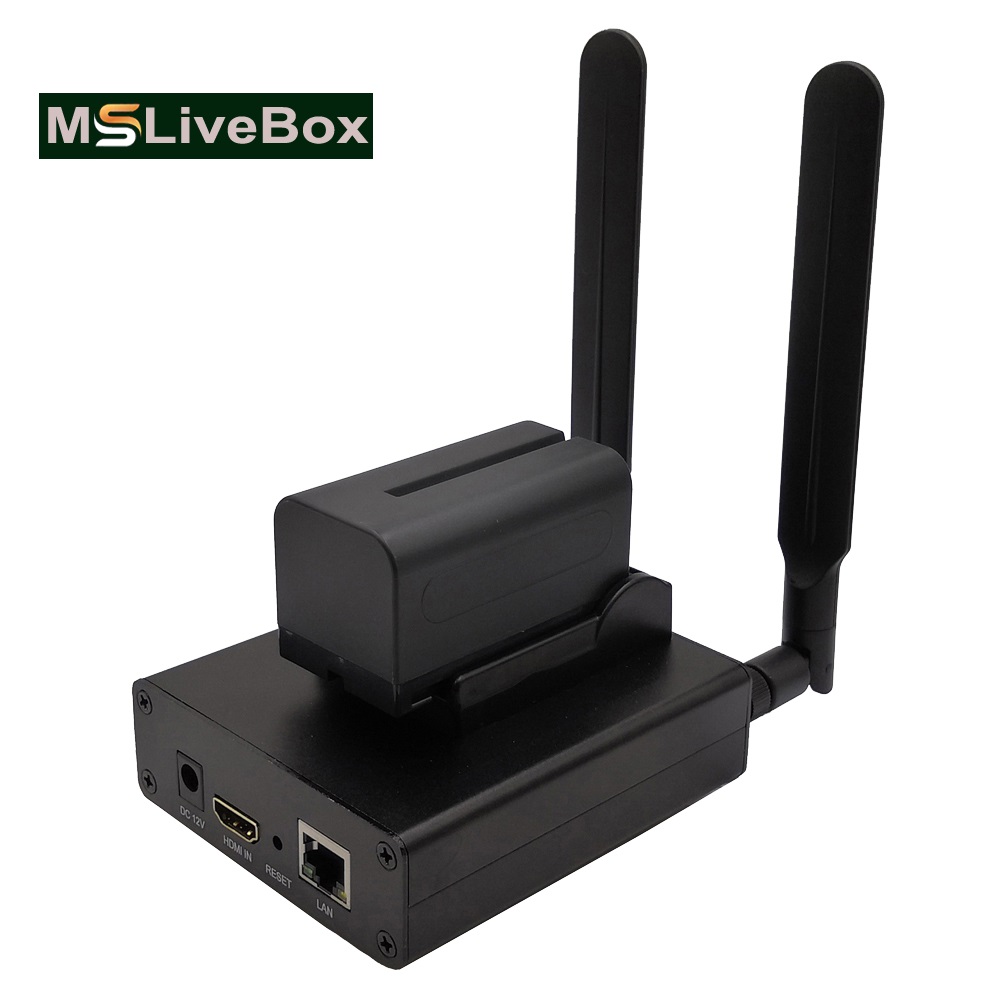

E-BTW100 – H.264 HD Wireless WiFi HDMI IP Encoder For IPTV

45,000.00 42,000.00

  • Brand Name: MSLiveBox
  • Package: Yes
  • Model Number: E-BTW100
  • Voltage: 12V
  • Input: HDMI(audio bulid-in)
  • Output: 1000M Ethernet Port(RJ45) Or WIFI(2.4G /5G)
  • Streaming Protocol: SRT, HTTP, RTSP, RTMP, RTMPS, UDP, RTP, ONVIF, HLS(M3U8), Multicast
  • Video Encoding: HEVC /H.265, H.264 /AVC, MJPEG
  • Audio Encoding: AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
  • Bitrate Control: 32kbit /s to 32mbit /s Adjustable
  • Upgrade: Firmware is Upgradeable
  • Battery: SONY Battery F550, F750, F970 for Selection
  • Video Resolution: Max 1920x1080P /60fps Input and Output
  • Service: Provide SDK and API and CGI for Secondary Development
  • Hot Shoe: Yes, it is included
  • OSD: Support Insert Logo and Text and Time on the Output Displayed Video
  • Control Panel: Webpage or APP Control
  • Video Stream: Up to 4 Video Streams Output Simultaneously
  • Customization: Support Logo, Language, Firmware etc Customization
  • Warranty: 1-year Warranty and Free Lifetime Technical Support


Share With love


MSLieBox video encoder(Model No. E-BTW100) is a HD audio and video encoding device with powerful functionality. It supports HDMI(audio build-in) input, H.265 /H.264 video encoding and AAC /MP3 /MP2 /AC3 /G.711 audio encoding, 4 video streams output simultaneously. It supports SRT, HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV, RTMPS etc streaming protocol. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.

We produce multi-channel video encoder decoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16 encoder cards to be installed.

All MSLiveBox video encoders and video decoders include a one manufacturer warranty and free lifetime technical support. Also we provide SDK and API and CGI control protocol for secondary development. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.

Typical Connection

1). For Live Streaming Online Connection



2). For Multi-purpose Connectionx2


3). For IPTV Project ConnectionHTB1KZ6dT3HqK1RjSZFPq6AwapXa6


The Feature

•   Embedded HiLinux system, stable and effective

•   Support wide area network remote management(via port forwarding)

•   Support HEVC /H.265 and MPEG-4 /H.264 AVC and MJPEG video encoding for selection

•   Support AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 audio encoding for selection

•   The bitrate of output video stream is adjustable from 32kbit/s to 32mbit/s(CBR or VBR bitrate controlling mode)

•   Support SRT, HTTP, UDP, RTP, RTSP, RTMP, RTMPS, HLS(M3U8), FLV, ONVIF, Unitcast, Multicast etc streaming protocol

•   Support insert image, logo, text, roll text, time on the output video stream

•   Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)

•   Support different protocol transmission for the 4 output video streams

•   Support upgrade device by upgrading new firmware

•   Support configure the encoder via webpage or APP

•   Support hot shoe mount at camera

•   Support external SONY battery F550, F750, F970 for selection

•   Support 2.4G WIFI and 5G WIFI

​​•   Support connect to spare WIFI automatically  when WIFI signal lost connection

•   Provide SDK and API and CGI for secondary development

•   Network interface full-duplex mode with 1000M speed

•   Support HDCP and HD blue-ray

•   English webpage operating interface, language is customizable

•   A click to restore the default configuration

•   Stable and effective, support 7 x 24h working time

•   Support multichannel 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack

•   Provide many kinds of customization(logo print, language customization, firmware or function customization etc)

•   Multi platforms live streaming

This HDMI encoder is easy to be operated. Turn your HDMI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, you can choose any of the popular live streaming platform to live streaming at anytime you like, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xtream codes. It supports multi-stream output, up to 4 video streams output simultaneously. You can push multi video stream to multi-platform at the same time.



•   Multi type video stream URL play

Not only pushing video streams to online platforms, you can also use video software or APP such as VLC or Vmix etc to play video stream URL. With these video stream URL, you can play video at anywhere, at any time. Meanwhile, you can add logo or text or time to displayed video.


•   Long-lasting battery life

You can use SONY battery F550, F750, F970. Normally the battery enable you to do live stream broadcast for 8+ hour. When the electric quantity is low, you can just connect a USB battery pack to keep it going.

Note: 1.  The working time of the battery is based on the battery model

2.  The battery is not included because of the shipping reason.You can buy SONY battery F550/ 750 /F970 at your local place.


The Specification
Model No. E-BTW100
Input HDMI(Support HDCP)
Input Resolution Max 1080P or 1080i resolution, Max 60fps frame rate
Encoding Type HEVC /H.265 and H.264 /AVC and MJPEG for selection
Encoding Levels H.265 main profile; H.264 high /main /baseline profile
Video Bitrate Adjustable From 32kbit /s to 32mbit /s
Bitrate Control CBR or VBR or Strong CBR for selection
Output Resolution It is adjustable, max 1920x1080P /60fps
Video Pre-processing De-interlacing, noise reducing and sharpening
Input HDMI embedded audio
Audio Encoding AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Sampling Rate 44.1KHz, 48KHz
Bitrate Control Adjustable from 48000~320000
Sampling Accuracy 24bit
Interface 1000M Ethernet port(RJ45) Or WIFI(2.4G /5G)
Streaming Protocol SRT, HTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, ONVIF, RTP, Unitcast, RTMPS etc
Control Panel Webpage control panel(language customization) or APP
Firmware Upgrade Firmware is upgradeable
Dimension (W* L* H) 105 x 95 x 30 /mm
Net Weight 0.3kg
Hot shoe Included
External Battery Support SONY battery F550 /F750 /F970 for selection
Temperature 0 to 45(For working), -20 to 80(For storing)
Input Voltage DC 12V /1A
Power Consumption 5w


Control Panel

1.  Status Displaystatusstatus2status3


2.  Video Stream Settingnetwork


3.  Audio Settingaudio


4.  Advanced Settingadvancedadvanced2


5.  OSD SettingOSD1OSD2


6.  Logo UploadLOGO


7.  Network Settingmain1main2




9.  Upgrade FirmwareUpgrade


APP Control
