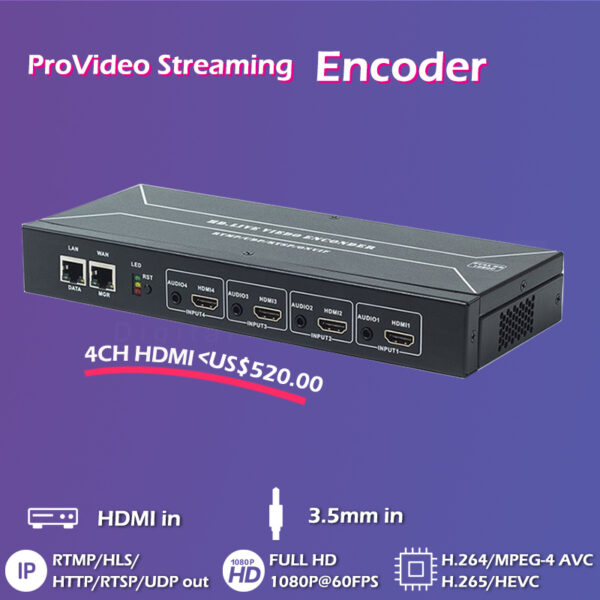

4Ch HD/HDMI H.265/H.264 Video Encoder -DMB-8904A

85,000.00 78,000.00

  • Model Number: DMB-8904A
  • Brand Name: MSLiveBox
  • Package: Yes
  • Voltage: 110v
  • Input: 4*HDMI,4*3.5mm Analog Audio
  • Output: TS over IP(1000M),1*SDI
  • Protocol: RTMP HLS HTTP UDP Unicast/Multicast
  • Resolution: Upto Full HD 1080P
  • Application: IPTV,OTT,Live Broadcast
  • Bitrate Mode: CBR,VBR
  • Color: Black
  • Video Encoding: H.264/MPEG4,H.265/Hevc
  • Audio Encoding: AAC,MP3
  • Configuration: Web Operation
  • HDCP: Support
  • OSD: Insert Logo&Text In Output Video Stream
Categories: ,


Share With love


DMB-8904A Classic ProVideo Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.264/H.265, which realizes its resolution to be up to 1080P. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth.


DMB-8904A Classic accepts 4*HDMI and 4*3.5mm input and each channel of HDMI input outputs 4 channels TS over IP in H.264 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs. Moreover, it provides username and password matching function required from a destination server, aiming at avoiding unauthorized streamings.


DMB-8904A Classic provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.



1. Support 1 channel IP signal output, 1 channel IP signal management.

2. Switchable audio output mode: Left, right and Stereo

3. Display on multi-screens from a computer is available

4. Up to full HD 1080P output.

5. Workable under HLS, RTMP, RTSP/HTTP/UDP unicast and multicast(Username and password verification allowed under RTMP)

6. Support HDCP protocol

7. Support ONVIF Network Video Protocol

8. Multi-protocol, multi-resolution and multi-bitrate are configurable

9. Any iOS device browser (iPhone, iPad, MacBook etc) is able to have streams from IPTV Streaming Encoder Anytime, Anywhere by HLS protocol without installing any software players.

10. Any terminal device/decoder is able to have streams from IPTV Streaming Encoder

directly by RTMP protocol with software players(such as VLC).

11. Audio encoded bit-rate: 48K /64K /96K /128K/160K/192K /256K

12. Bit-rate mode CBR/VBR,16Kbps~12Mbps

13. Video packing: FFMPEG/ VLC

14. Transport method: TCP,UDP,1000M (RJ45 duplex interface)

15. Web-based management easy for configuration.

16. Scrollable English OSD ,picture overlay and logos are available while letters and symbols can be displayed anywhere in the screen

17. Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance

18. Image setting: contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering

19. Audio: embedded or line in; left & right; built-in audio gain for independent volume adjustability

20.  Able to encode with absence of video signal

21.  The setting comes into effect once finished while reboot is unnecessary

22. Default configuration can be done by one key recovery

WINDOWS XP/VISTA/SERVER 2003/SERVER 2008/WIN7 32 and WIN7 64, LINUX are supported

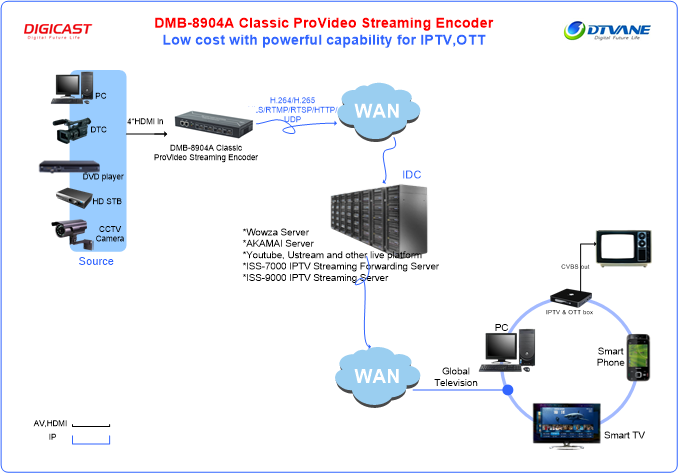

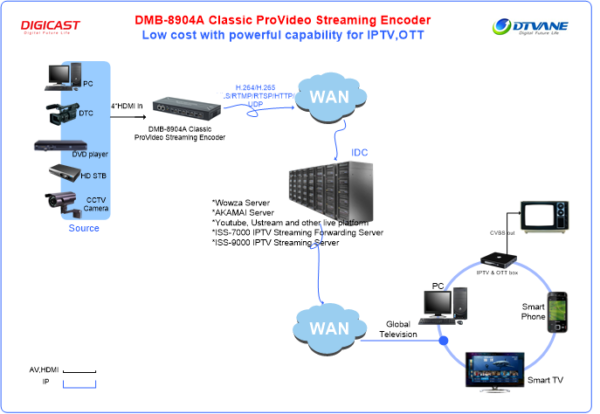

> IPTV & OTT system

>Internet TV

>Digital Signage Project

> Remote Video Conference

>Video Monitoring

>Live Streaming

>Digital TV Broadcasting System

>Digital TV Programs Transmission

>Hotel IPTV System

>Head-end system of Digital TV branch network

>CATV Broadcasting system

>Edge side of Digital TV backbone network



VIDEO Encoding l Video compression: H.264/H.265 High Profile Level 4.0

l Video inputs: HDMI(HDCP supported)

l Analog video input mode: PAL, NTSC

l Input resolution:

1920×1080,1680×1056,1280×720,1024×576,850×480,720×576,720×540, 720×540,720×480,


l Output resolution:

Main stream(supporting two protocols):

1920×1080,1680×1056,1280×720,1024×576,850×480,720×576,720×540, 720×540,720×480,


Sub-stream(supporting two protocols):


640×300,352X288,320X240,320X180 auto

l Bit-rate: 16kbps~12Mbps, CBR/VBR

l OSD: text, photo

l Video pre-processing: Noise reduction, Sharpen, Filtering

AUDIO Encoding l Input interface: 4*HDMI, 4*3.5mm line in(audio gain supported)

l Audio compression: AAC, MP3

l Sampling rate: Adaptive, selectable of re-sample

l Re-sample: 32KHz,44.1KHz

l Audio bit-rate: 48Kbps,64 Kbps,96 Kbps,128 Kbps,160Kbps,192 Kbps,256 Kbps,384Kbps

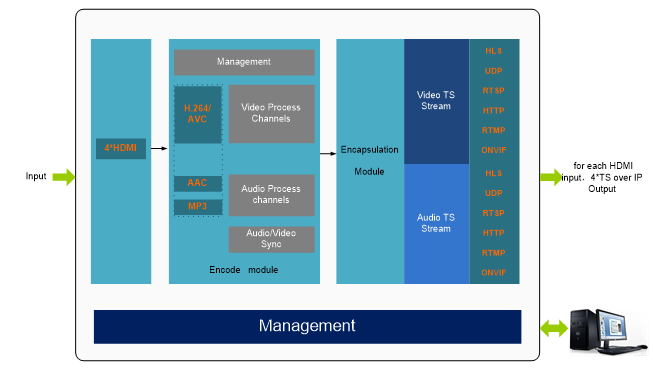

IP Stream output l For each HDMI in to IP output: 4*TS over IP stream out(HLS, RTMP, RTSP, HTTP, UDP, multicast/unicast, ONVIF, protocol).with 4 different resolutions (up to 1080p) and 4 different bitrates to meet different size screen and different bandwidth condition.

l Connector: RJ45,1000M

System l Configuration Interface: Web-based

l Remote upgrade via network

l Connector: RJ45, 1000M Ethernet interface.

Physical and Power l Voltage: 12V DC

l Power Consumption: 5W

l Operating temperature: -20~60℃

l Dimensions: 100mm(W)*250mm(D)*35mm(H)

Weight: 0.8 KG ((including accessories)
