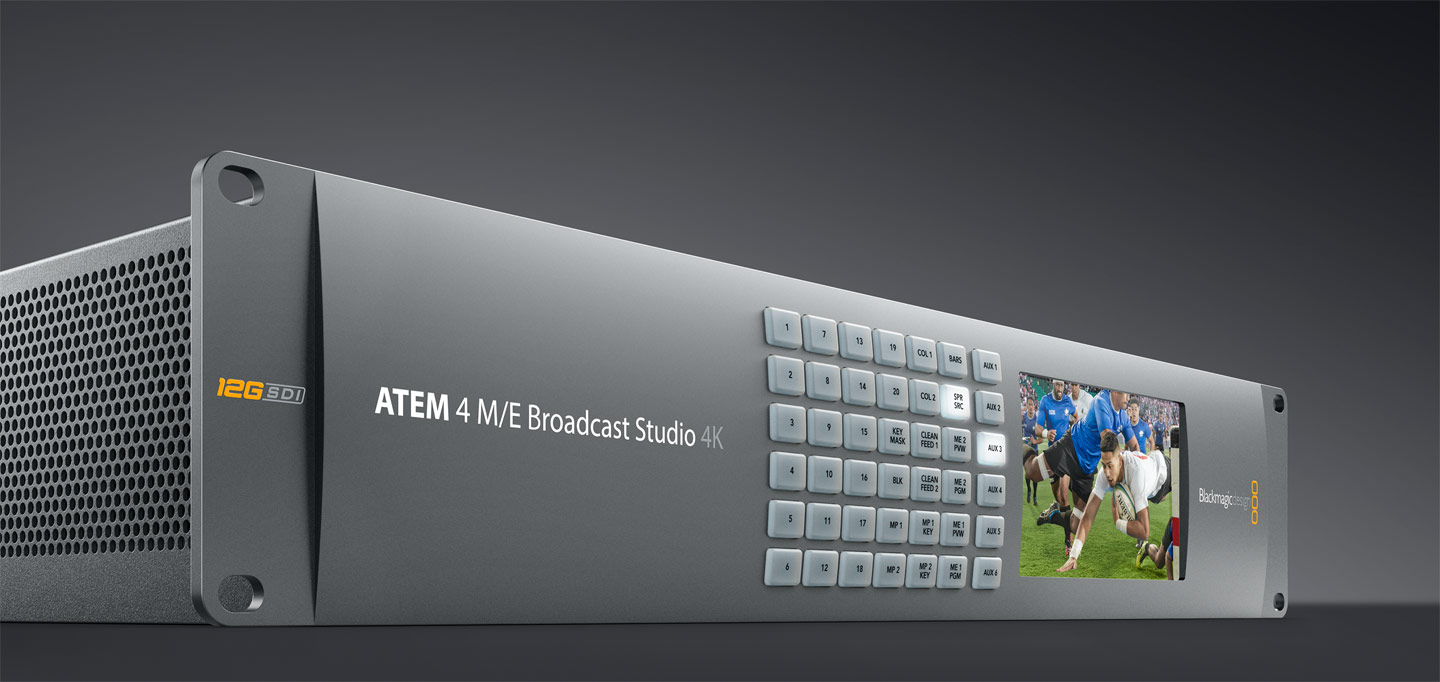

Blackmagic ATEM 4 M/E Production Studio 4K

467,300.00 420,300.00

Description

Get one of the world’s most compact and advanced switchers with the new ATEM 4 M/E Broadcast Studio 4K. You get an incredibly high performance live production switcher designed to work with the latest formats and high frame rates, all the way up to Ultra HD 2160p59.94! You get 16 next generation ATEM Advanced Chroma Keyers with 4 per M/E, perfect for advanced work and virtual sets. As the most advanced ATEM switcher, this model also includes the latest technology and features such as 2 Ultra HD multi viewers, full 2D DVE, built in SuperSource compositing engine with 4 picture in picture DVE’s, full re-synchronization on each 12G-SDI input and much more! The multi rate 12G-SDI connections automatically switch between all HD and Ultra HD formats up to 2160p59.94 with a single BNC cable! Even if you’re not working in Ultra HD now, the ATEM 4 M/E Broadcast Studio 4K has all the power and features for the highest end live production work, while being Ultra HD ready the instant you need it!

Description

Share With love

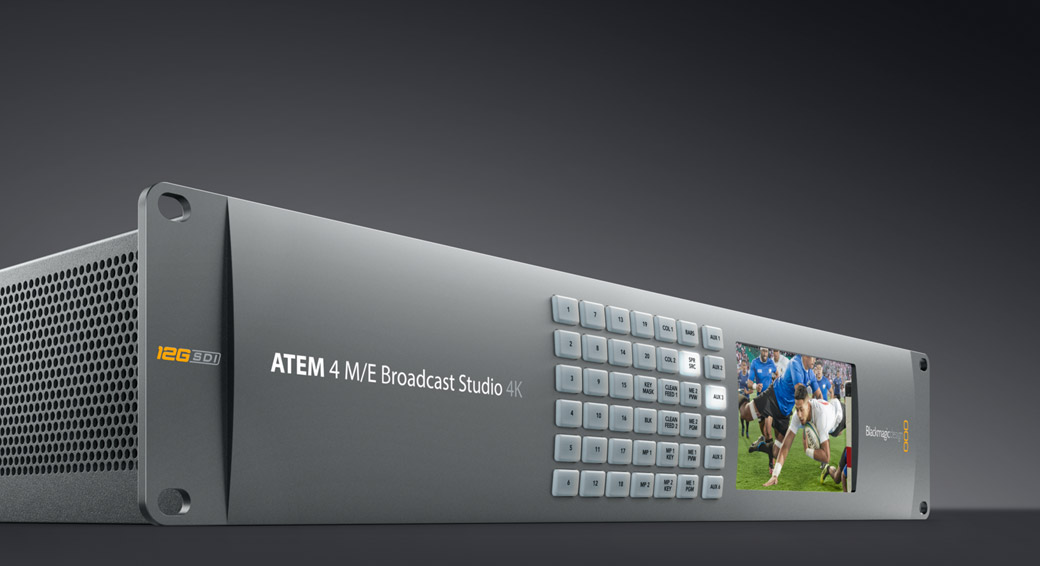

Award Winning Design

ATEM features advanced technology in an elegant design

Award Winning Design

ATEM live production switchers feature unique and revolutionary design because you get cutting edge technology and attractive design all miniaturized into an incredibly small size. The ATEM front panel is machined from a solid block of aluminum so it’s an attractive design but also strong enough to withstand the bumps and shocks when it’s installed in broadcast trucks and portable racks. With ATEM you get the most advanced technology and more creative features than any other solution!

ATEM live production switchers feature unique and revolutionary design because you get cutting edge technology and attractive design all miniaturized into an incredibly small size. The ATEM front panel is machined from a solid block of aluminum so it’s an attractive design but also strong enough to withstand the bumps and shocks when it’s installed in broadcast trucks and portable racks. With ATEM you get the most advanced technology and more creative features than any other solution!

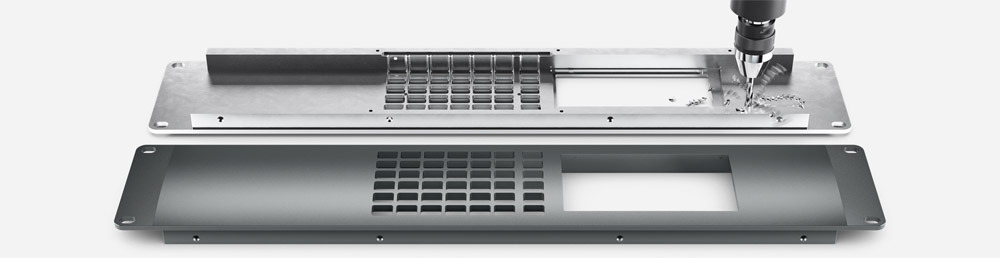

Machined Metal

Machined Metal

Elegant design looks great in your studio

ATEM live production switchers have an elegant machined aluminum design that’s optimized for live production. Designed with the features complex production demands, the elegant front panel includes illuminated buttons for aux switching as well as built in video display for live status! The built in 6G-SDI and HDMI 4K connections mean you get the latest technology for a future proof design that will work for you for years to come. Its compact size means you can install anywhere!

Fast Aux Switching

Select aux outputs quickly from the front panel

ATEM live production switchers include independent auxiliary outputs which are perfect for driving big screens at live events, because your switcher has access to all the video sources and camera feeds. This means your aux outputs are part of the event and you can use the front panel aux control buttons to instantly select cameras and other sources to the aux output. You get the choice of outputting video inputs, media players, key masks, clean feeds, program, preview, test signals and more!

Professional Connections

Standard connections
for quality and reliability

ATEM uses industry standard BNC connections for SDI video and XLR connectors for balanced analog audio so you get robust broadcast quality connections that maintain signal quality and support years of reliable operation. For compatibility with consumer cameras and computers HDMI connections are built in, eliminating the need for cumbersome external converters. Because the video connections support 6G-SDI and HDMI 4K you get a future proof design and the latest video technology.

Fast Aux Switching

SDI or HDMI Inputs

A model for your workflow

Choose from three exciting models of ATEM Production Studio 4K based on the needs of your workflow. The ATEM Production Studio 4K has 4 HDMI and 4 SDI inputs for a total of 8 inputs. For larger installations, the ATEM 1 M/E Production Studio 4K includes 10 SDI inputs and the ATEM 2 M/E Production Studio 4K includes 20 SDI inputs, with input 1 able to be switched to HDMI. All SDI and HDMI inputs can switch between SD, HD and Ultra HD television standards.

SDI or HDMI Inputs Icons

Zoom

Fast Aux Switching

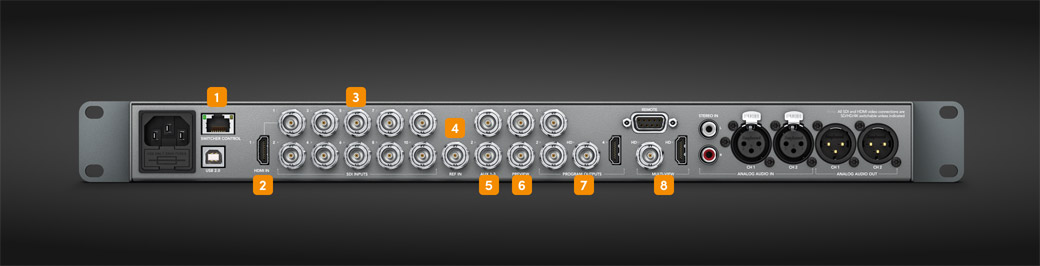

Professional Outputs

Broadcast to your audience

No matter if you’re broadcasting to your audience, connecting to your mastering recorder or streaming over the internet, ATEM has all the audio and video outputs you need. You get a 6G-SDI and HDMI main program output plus a down converted program SDI output. For easy monitoring on any HD-SDI or HDMI display, you get support for program, preview and 8 video source views using the built in multi view. Depending on the model you get up to 6 independent aux outputs!

Professional Outputs

1.

Ethernet Control

Connect your computer or control panel for switcher control.

2.

HDMI In

Switchable HDMI input for cameras or computer sources in SD, HD or Ultra HD.

3.

Up to 10 SDI Inputs

10x SDI inputs for cameras or decks in SD, HD or Ultra HD.

4.

REF In

Black Burst and HD Tri-Sync genlock input.

5.

Up to 3 AUX Outputs

Independent Aux outputs for clean feeds or driving large screens and projectors.

6.

Preview Out

6G-SDI preview output for monitoring next source video.

7.

Program Outputs

6G-SDI and HDMI program outputs and down converted HD output.

8.

SDI or
HDMI MultiView

View video inputs on a single SDI monitor or HDMI TV with downconverted HD output.

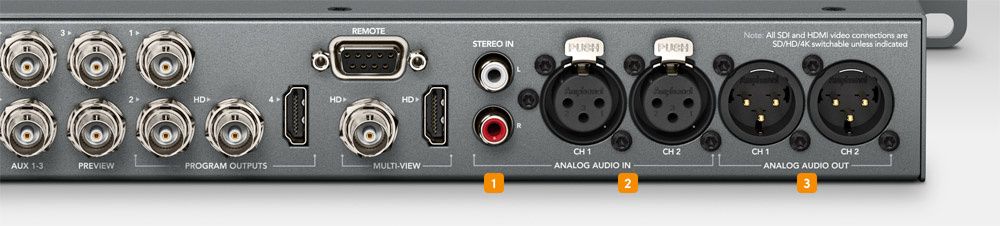

Professional Audio

1.

HiFi Audio Input

Connect consumer HiFi audio equipment to built in audio mixer.

2.

Balanced Audio Input

Connect professional audio equipment such as mics into built in audio mixer.

3.

Analog Audio Out

Main mix output from built in audio mixer. Perfect for feeding PA systems.

Professional Audio

The audio connections you need for great sound

ATEM has been designed for true professional broadcast quality audio. You get a built in audio mixer that lets you live mix the embedded audio from all video inputs. All inputs feature audio sample rate converters for clean sound even when the video input from non genlocked sources is being resynchronized. Balanced analog XLR audio inputs and HiFi RCA audio inputs are included and connect directly into the built in audio mixer. The built in audio mixer lets you manually mix sources or you can set mixer inputs to “audio follow video” so your audio crossfades as you switch between sources. Your program audio is embedded onto all video outputs and also output to balanced analog XLR audio connections.

Next Page - Features

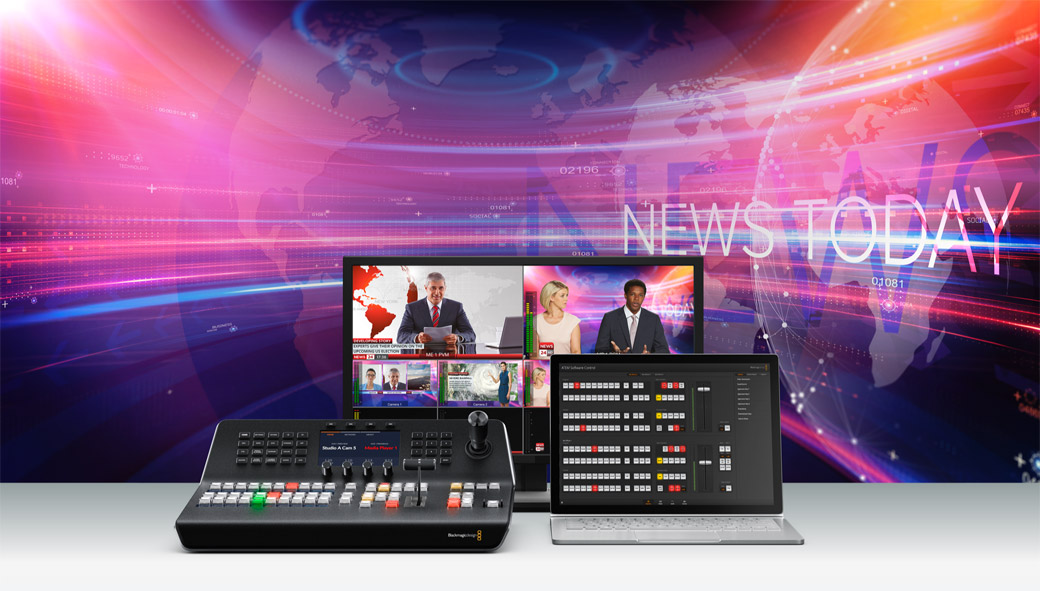

Features:

Features

Get the features you need for more creative production

Raise the production standard of any live event with the amazing built in features of ATEM live production switchers! You get upstream luma, linear, pattern and chroma keying for special effects, as well as downstream keying for logos and lower thirds. You also get 2 built in media players with media storage in the switcher for professional broadcast graphics! The ATEM 1 M/E and 2 M/E Production Studio 4K models as well as the ATEM 4 M/E Broadcast Studio 4K include a world class DVE for picture in picture effects and exciting stinger transitions.

Creative Transitions

Choose from a wide range of built in transitions!

Creative Transitions

CUT                   MIX                   WIPE                  DIP               DVE               GRAPHIC               STINGERS

ATEM live production switchers have an amazing choice of transitions including Cut, Mix, Dip and Wipe patterns. The advanced 1 M/E, 2 M/E and 4 M/E models also give you key frame based DVE moves, flying graphics and animated stingers! Every transition is instantly available and you get full control of the transition type, pattern, length and more. With so many creative options you can always find the perfect ‘on air’ style, so there’s no limit to the combination of exciting effects you can create!

Cut

The cut transition is the most simple and widely used of all transitions and you will use it continuously! When you press the cut button, ATEM instantly changes from current program source to the preview source precisely at the moment you hit the button. Cuts can be performed by directly selecting sources on the program bus or more commonly by pressing the cut button to transition to the next source lined up on the preview bus. Cut is easily the most popular transition!

Cut

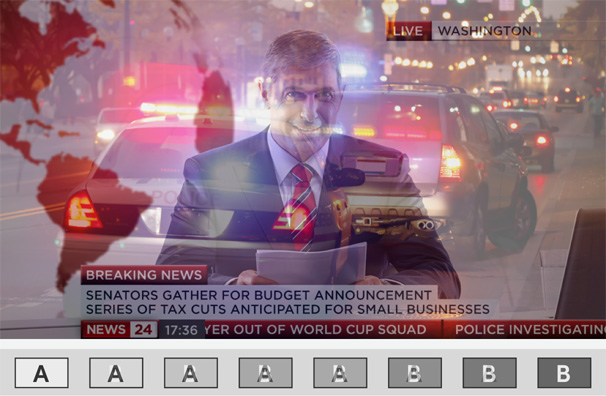

Mix

One of the most elegant transitions in live production is the dissolve or mix transition. Gradually transitioning from one source to the next by creating a smooth blend between the sources brings out the emotion in your production. You can simply press the auto transition button to automatically trigger a mix between shots at a pre-set transition rate. You can use the t-bar to manually blend the transition for the perfect live mix.

Mix

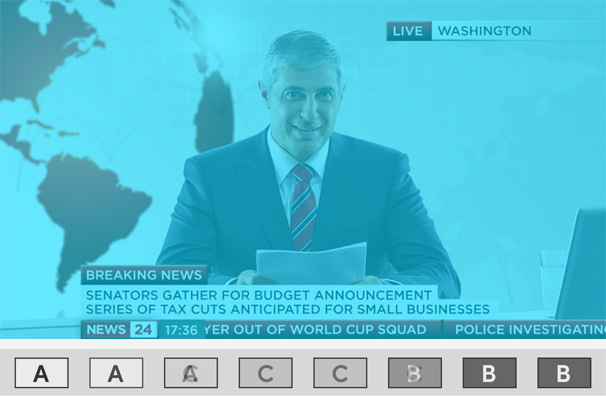

Dip

Similar to mix transitions, a dip transition is a gradual blend from source to source however, the transition dips to an intermediate third source before completing the transition to the next shot. You can choose to dip to any color, a graphic from the media players or even a live video source. Use black or white for the intermediate source for incredible creativity! For sponsored live productions like sports events, use dip transitions to flash up a sponsor’s logos during the broadcast!

Dip

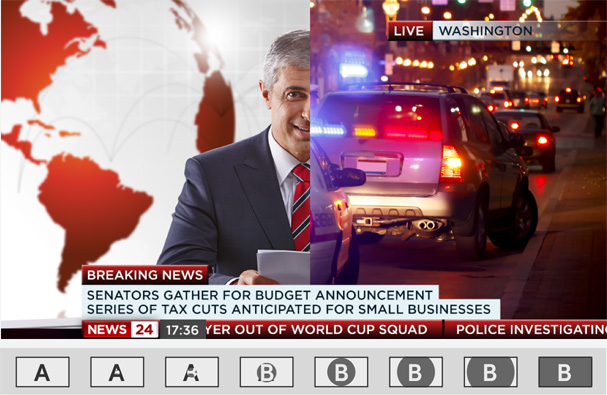

Wipe Patterns

ATEM Production switchers have 18 built in wipe patterns, which let you create over 100 different styles of wipe transitions! You can use circles, diamonds, squares and more to transition from one source to the another as you gradually expand the shape to reveal the next source. Patterns can be inverted, softened or have customized colored borders. You can also insert live video into borders creating wipe pattern transitions that include three live video streams at the same time!

Wipe

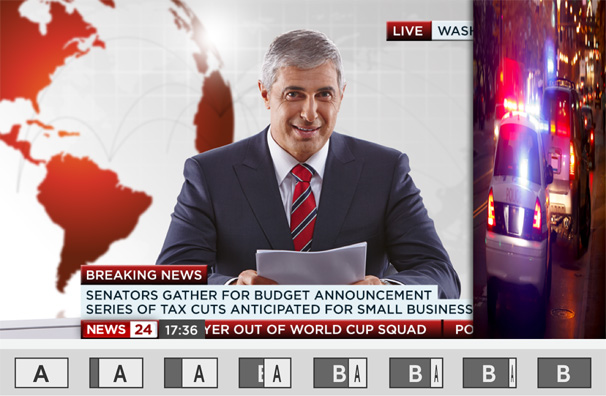

DVE

The advanced 1 M/E, 2 M/E and 4 M/E models have a powerful built in Digital Video Effects processor or DVE. You can push, spin, squeeze and swoosh your live video from one camera to the next with incredible built in DVE transitions. DVE transitions can be flip flopped and reversed giving you even more transition options. You get over 35 exciting DVE preprogrammed moves to choose from. Using the DVE for transitions will increase the production value on any live production!

DVE

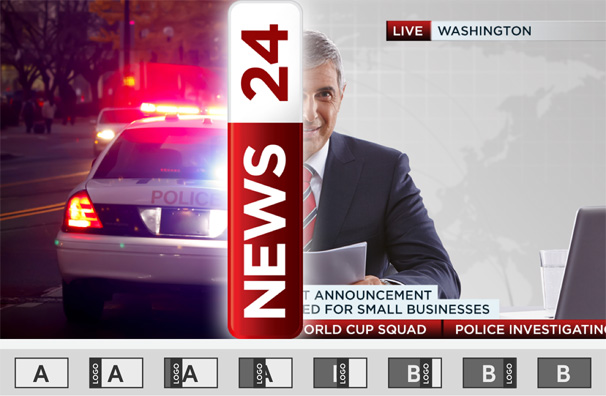

Graphic

When you want to combine sponsor logos with transitions during a live production, graphic transitions are the perfect solution! Use the DVE to create amazing flying graphic effects and logo wipe transitions. You can create high resolution logos in Photoshop CC using the included plug-in to load directly into the ATEM media pool. Photoshop CC graphics with premultiplied keys are perfect for smooth flying logos in the highest quality, as your logo moves across the screen, the shot transitions with a hidden wipe under the flying graphic!

Graphic

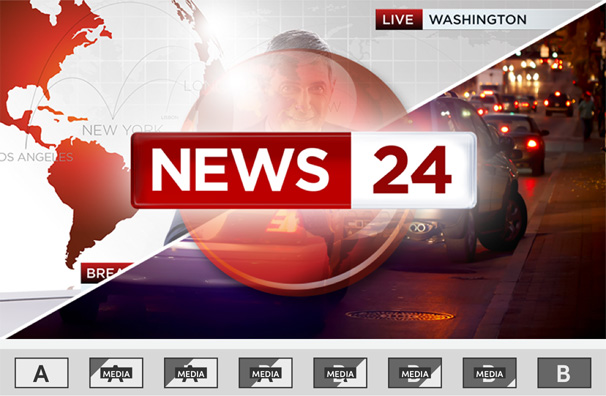

Stinger

You can create exciting eye popping Stinger transitions by combining live video with animated graphics and sound effects. When you trigger a Stinger, your animation is instantly played back from a media player and keys over the live video as it wipes to the next shot. You also get simultaneously mixed sound effects with the live program output. Stingers are widely used for live sports broadcasts as great transitions to instant replays and back to the live action!

Stinger

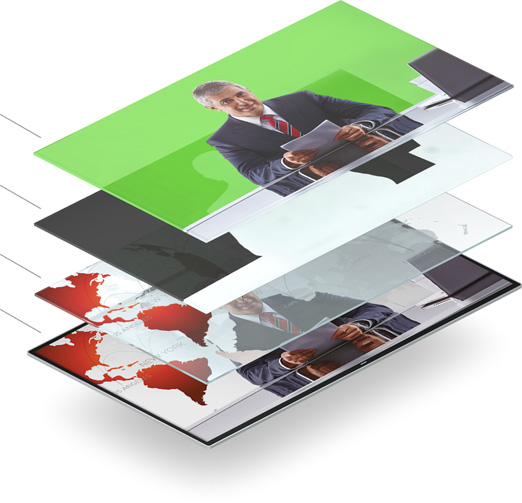

Upstream Keyers

Amazing multilayer live action

All ATEM live production switchers include powerful upstream keying for amazing broadcast effects! Layer live video, titles, graphics and animation over live video or graphic backgrounds with incredible quality using chroma, luma, linear and pattern keying. You get 4 built in upstream keyers and a DVE in the ATEM 1 M/E Production Studio 4K, and the ATEM 4 M/E Broadcast Studio 4K has 4 advanced keyers for each M/E! That’s a massive 16 independent chroma keyers which means you can create mind blowing broadcast quality multi layer effects for your production.

LUMA                           LINEAR                          DVE                          CHROMA                         PATTERN

Upstream Keyers

Clean Feed
Upstream Keyer
Background
Program Out
Luma Key

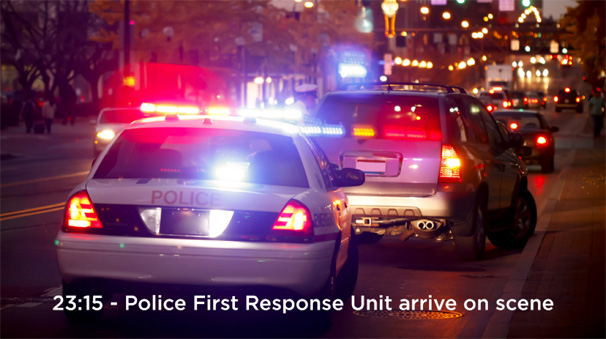

Luma Key

Luma keys are sometimes known as a self key because the same video source is used for cutting the key and overlaying the video image. You can do this with live video from a camera, prerecorded video from a HyperDeck or graphics loaded in the media pool. Luma keys work the best with high contrast images like white elements on a black background, so that you can use the contrast to cut the black background and replace it with live video or broadcast graphics.

Linear Key

Linear Key

Get incredibly clean, high quality results with Linear keying by using two separate sources for the fill and the key to create one video image! The fill signal contains video to be stacked over the background, while the key signal contains a grayscale mask to cut out or mask the area to be filled. Fill and key signals can be graphics from the media pool, live motion video, or video and key from an external character generator or graphics system.

Chroma Key

Chroma Key

Used every day for TV weather forecasts, chroma keys are a very powerful way of combining live images together in real time, cleanly in high quality! The presenter stands in front of typically a green or blue background, and the chroma keyer will remove only that color and combine it with another image such as prerecorded video or graphic. ATEM Switchers include multiple keyers so you can simultaneously combine multiple live, prerecorded, graphic and chroma key elements in real time.

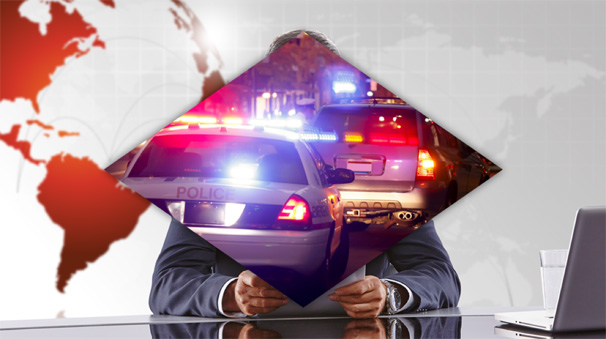

Pattern Key

Pattern Key

Create amazing transitions with the pattern key! You can use any one of the 18 built in wipe patterns to combine live images or graphics with geometric shapes. The pattern keyer gives you full pattern control including softness, symmetry, size and position completely independent of the transition block. That means you can use pattern keys to create picture in picture effects that can be transitioned to as easily as any live camera source, and you don’t need to tie up your DVE!

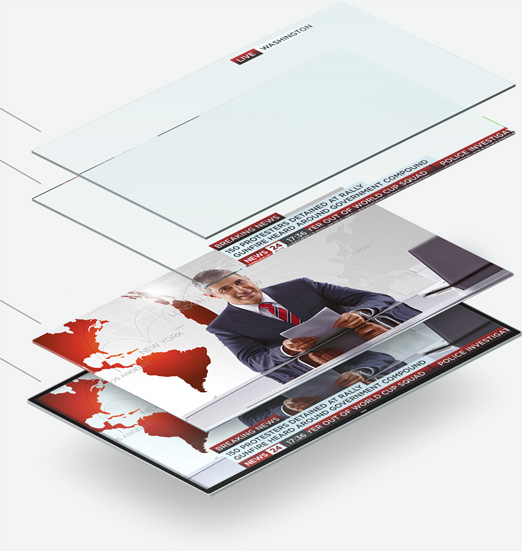

Downstream Keyers

Add bugs, logos andlower thirds

All ATEM switchers feature two downstream keyers so you can insert high quality graphics like logos, bugs and titles over the live ‘on air’ program output. Downstream keyers are the last layers of keying so they overlay all video switched to the main program. You can also easily bypass the downstream keyers by using the clean feed aux outputs. This means you can record the clean feed as your master and use the downstream keyers for overlays that you only want on air.

                      BUGS                                                    LOGOS                                        LOWER THIRDS

Downstream Keyers

Downstream
Keyer 1
Downstream
Keyer 2
Clean Feed
Program Out

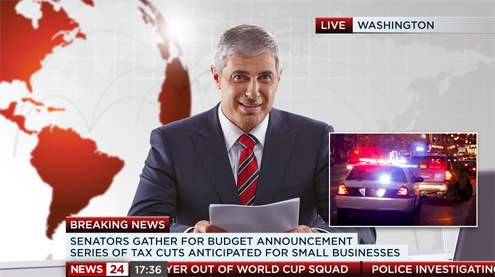

DVE

Move, resize, scale and rotatelivevideo instantly!

Perfect for live breaking news production, the DVE lets you create live crosses from the studio to the excitement on location. Create picture in picture effects with both the studio host and location reporter combined as one video output. The high quality DVE gives you control of size, position, rotation and features 3D borders, drop shadows and lighting! You can save customized DVE positions and automatically trigger the picture to animate full screen or zoom as the live interview concludes.

DVE

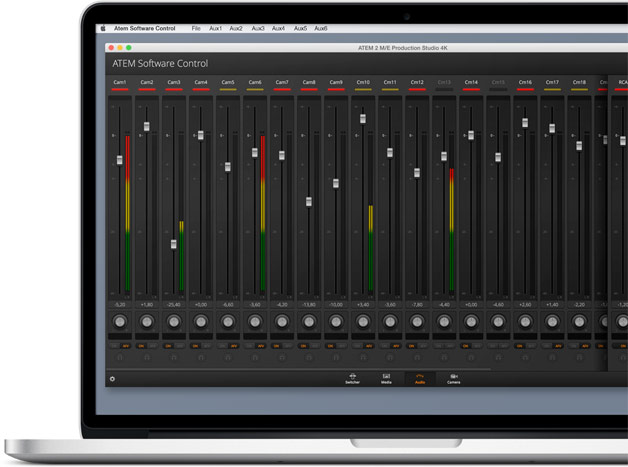

Audio Mixer

Mix cameras and audio inputs withthebuiltinaudio mixer!

ATEM’s built in audio mixer is incredibly powerful and easy to use! Open the audio mixer control tab on your Mac or PC and you get complete multi track mixing control with level meters! You can direct camera and external audio with precision level and balance adjustments, enable and disable channels or activate audio follow video mode instantly. You can also connect to Mackie™ standard USB audio mixer panels, giving you hardware feedback and the feel of flying faders and meter displays.

Audio Mixer

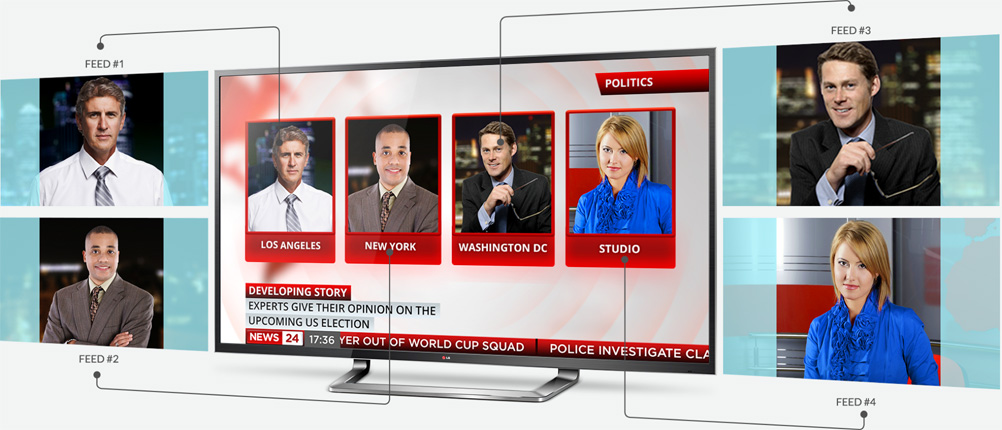

SuperSource

SuperSource

The advanced ATEM 2 M/E Production Studio 4K features an amazing built in SuperSource layering switcher! In addition to 2 full M/E’s, keyers and DVE, you get an additional 4 independent DVE channels so you can resize and position live cameras, video replays, broadcast graphics and more. SuperSource is like having an additional multi layer VFX switcher built in! Imagine being able to take a satellite video feed from 4 different locations to create multi camera interviews or a picture in picture live broadcast!

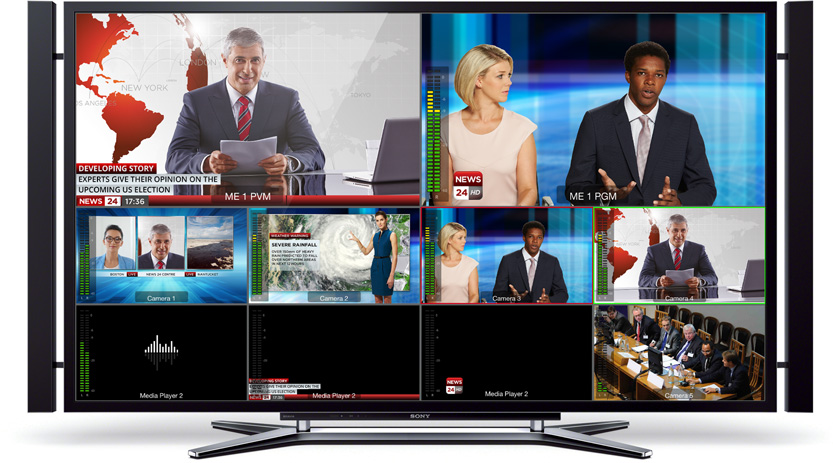

Multi View

Multi View

Get multi camera monitoring using a single low cost TVs

ATEM live production switchers let you connect loads of sources and monitor them all at the same time using the built in multi view. Multi view makes it easy to see your cameras, graphics, preview and program outputs on single screen. That means you don’t need lots of monitors to see all your individual cameras! You get HDMI and SDI multi view outputs so you can connect to professional broadcast SDI monitors or even low cost big screen televisions using the HDMI multi view output! The advanced ATEM 2 M/E Production Studio 4K model features 2 independent multi view outputs so you can see up to 16 cameras across 2 screens.

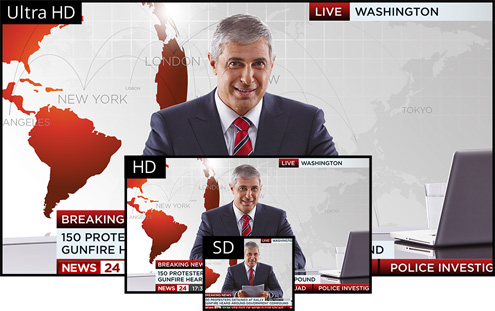

Multiple Television Standards

Switch television standards for any type of live production

ATEM gives you the flexibility to work in different standards at any time! Most live production is currently being produced in HD, and now you can work in SD or in the new Ultra HD standard whenever you need. ATEM live production switchers are designed to operate in virtually any SD, HD and Ultra HD television format, so you can operate in the SD or HD television format you need today, and then instantly switch over to Ultra HD in the future! That’s a true future proof design!

alt

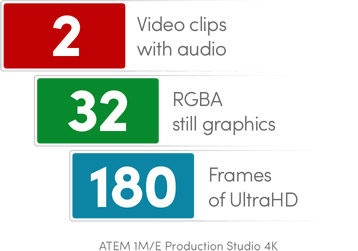

Internal Media Players

Load on-air graphics to eliminate complex external servers!

You can store broadcast quality RGBA graphics in the media pool ready for instant playback via the ATEM media players. The two media players appear as input sources to your switcher. You can transition to graphics as full frame video or feed them to the keyers for overlaying video. Popular image formats such as PNG, TGA, BMP, GIF, JPEG and TIFF are supported. The advanced ATEM 1 M/E and 2 M/E Production Studio 4K models feature a larger media pool with live clip storage plus 32 still graphic support.

ATEM Production Switchers
Photoshop CC Plug-in
Plugins software

Photoshop

Photoshop CC Plug‑in

Create and download graphics directly to your ATEM

With the included Photoshop CC plug-in, you can create graphics live and then instantly download them into the ATEM media pool. Most graphic designers know and use Photoshop CC every day and now you can use their creative skills on your live production! Designers can create professional broadcast graphics such as logos, lower thirds, scorecards and other real time graphics that can be downloaded directly to the media pool. Now you can instantly change live graphics in seconds!
