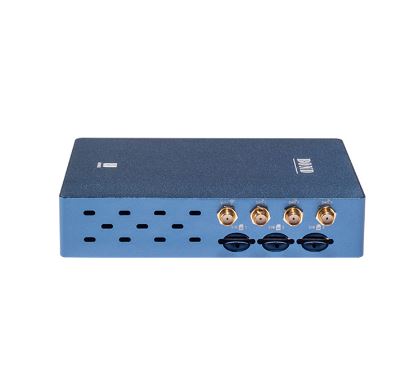

MSW1005 Portable Bonding Encoder

105,000.00 82,000.00

Model MSW1005
Video Input HDMI
Video Compression H.264/H.265
Recording Mp4
Video format PAL NTSC 1080I: 50/60 fps
Streaming resolution 480*270 640*360
1280*720 1920*1080
Recording resolution 1080p60
SD Card TF max 2TB
4G network 3X SIM TD/FDD-LTE
Working duration 4-5H
Power consumption 12w
Weight 2.5kg
Language English
Internet Protocol RTMP/RTSP
Working Temperature 0-45℃
Storage humidity 5-40℃


Share With love

MSLivebox MSW1005 4G Video Encoder With Cellular Bonding H264/H265+
Streaming Encoder having both HDMI/SDI switchable inputs
Full HD support 1080P target to Youtube, Facebook, Twitch, RTMP, Wowza servers.

  • Brand Name: MSLiveBox
  • Package: Yes
  • Model Number: MS-W1005
  • Voltage: 12V
  • Input: HDMI,SDI(Optional)
  • Control: WEB GUI
  • Protocol: rtmp
  • Network Mode: 3G/4G, WIFI, LAN
  • Resolution: Upto Full HD 1080P
  • Application: Live Event Broadcast
  • Video Encoding: H.264,Hevc
  • 4G module: Built in one 4G module
  • Bitrate: VBR,CBR
  • Audio Compression: AAC,MP3

Product Description

MSW1005 is a live streaming encoder which aggregate Ethernet, Wi-Fi and up to 3 x 4G SIM cards to create a single, robust pipeline for delivering video. The combination of several network connections allows broadcasters to reinforce their video by sending traffic over multiple routes, repackaging at the destination with rock-solid dependability. Therefore, you can stream anywhere any time. It can also be controlled via a mobile APP for configuration and monitoring. It is convenient to stream to some website like YouTube or Facebook directly.
Meanwhile, H.265 + protocol will save your more bandwidth. It”s a very ideal solution for streamers and broadcasters.
